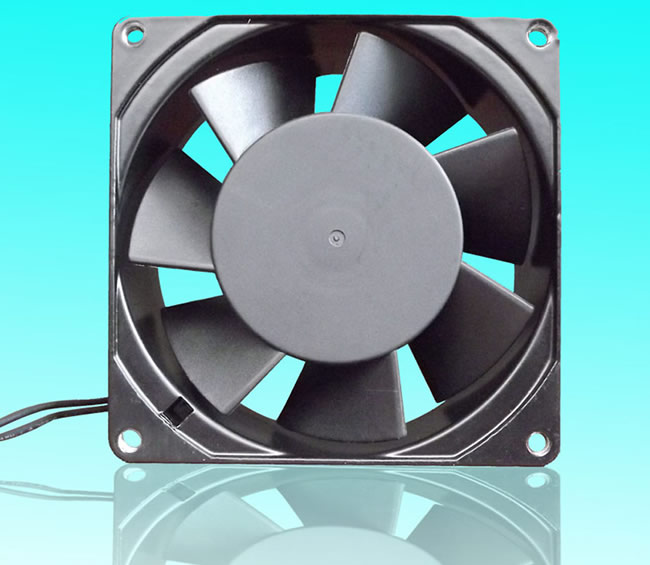

SA9238
HOME >> Products >> Cooling Fan
| 耐 壓 | 1800V AC/3秒不擊穿 |
| 絕 緣 | 500V DC不低于100兆歐 |
| 工作溫度 | -20～70ºC (含油軸承) -20～70ºC (滾珠軸承) |
| 風機溫度 | 低于85ºC |
| 扇葉材質 | PBT94ULV黑色 |
| 外框材質 | 鋁合金 |
| 允許偏差 | 電流±10%；功率±10%；轉速±10%；風量±10% |
| Pressure endurance | 1800V AC/for 3 seconds still functioning |
| Insulation | 500V DC more than 100M Ω |
| Operating temperature | -20～70ºC (sleeve bearing) -20～70ºC (ball bearing) |
| Fan temperature | low than 85ºC |
| Blade material | PBT94ULV black |
| Outer casing | Aluminum alloy |
| Deviation rate | Current±10%；Power±10%；RPM±10%；CFM±10% |
| Model 型號 |
Bearing System 培林 |
Voltage 電壓 V |
Frequency 頻率 HZ |
Current 電流 A |
Power 功率 W |
Speed 轉速 RPM |
Air Flow 風量 CFM |
Static Pressure 風壓 Inch-H2O |
Noise 噪音 dBA |
Weight 重量 G |
|---|---|---|---|---|---|---|---|---|---|---|
| SA9238A2PBL | BALL | 230 | 50 | 0.082 | 14 | 2300 | 50 | 0.18 | 39 | 320 |
| SA9238A2PSL | SLEEVE | |||||||||
| SA9238A1PBL | BALL | 115 | 60 | 0.12 | 10 | 2600 | 60 | 0.23 | 43 | 320 |
| SA9238A1PSL | SLEEVE | |||||||||
| SA9238A2HBL | BALL | 230 | 50 | 0.070 | 12 | 2200 | 45 | 0.16 | 37 | 320 |
| SA9238A2HSL | SLEEVE | |||||||||
| SA9238A1HBL | BALL | 115 | 60 | 0.10 | 8 | 2500 | 55 | 0.21 | 41 | 320 |
| SA9238A1HSL | SLEEVE |
